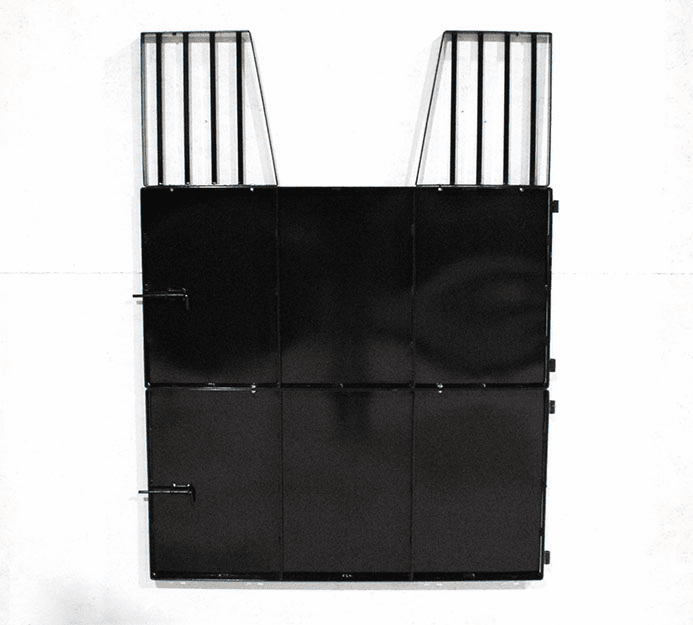

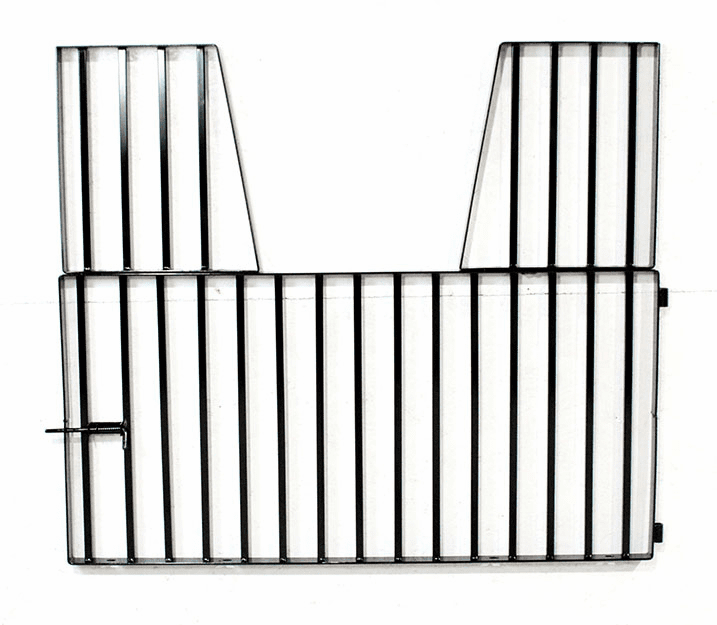

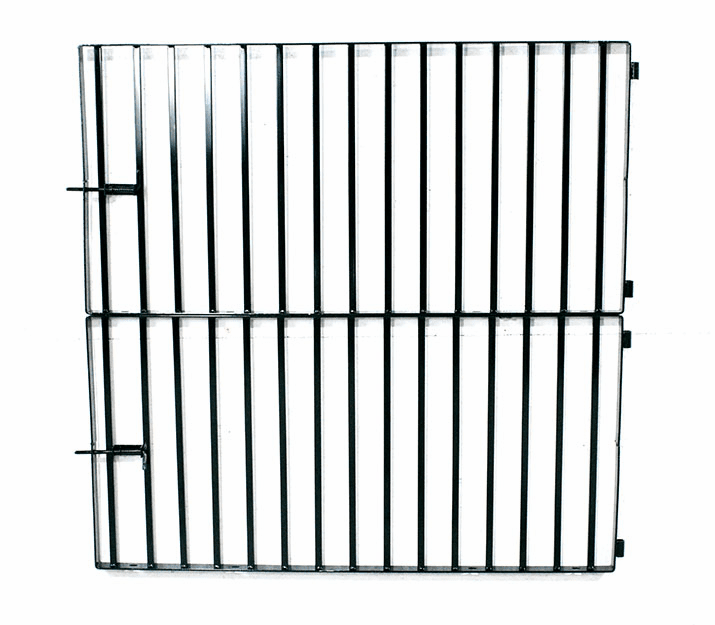

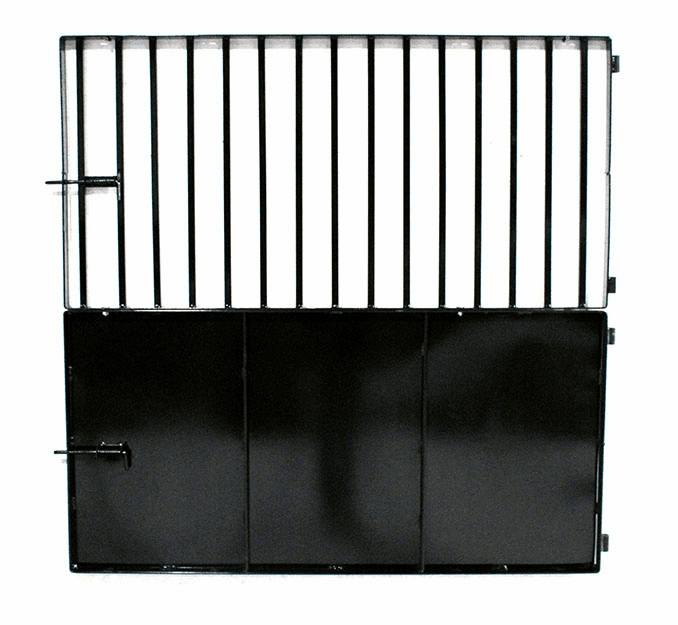

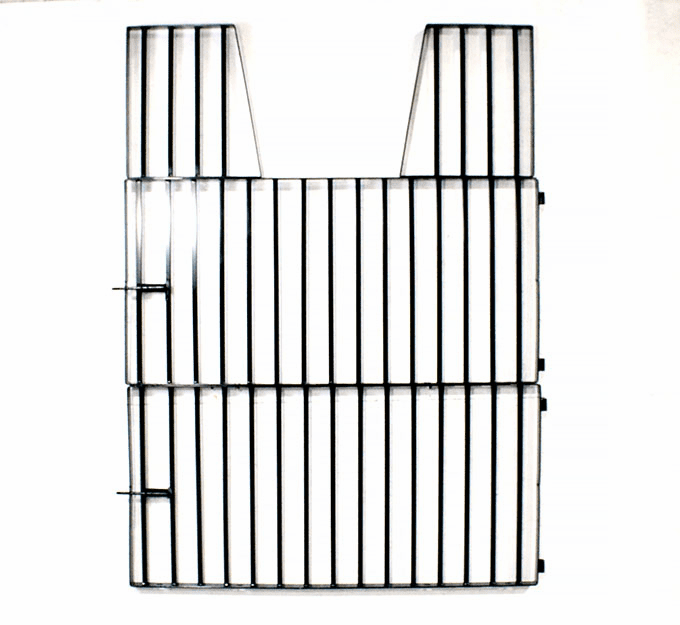

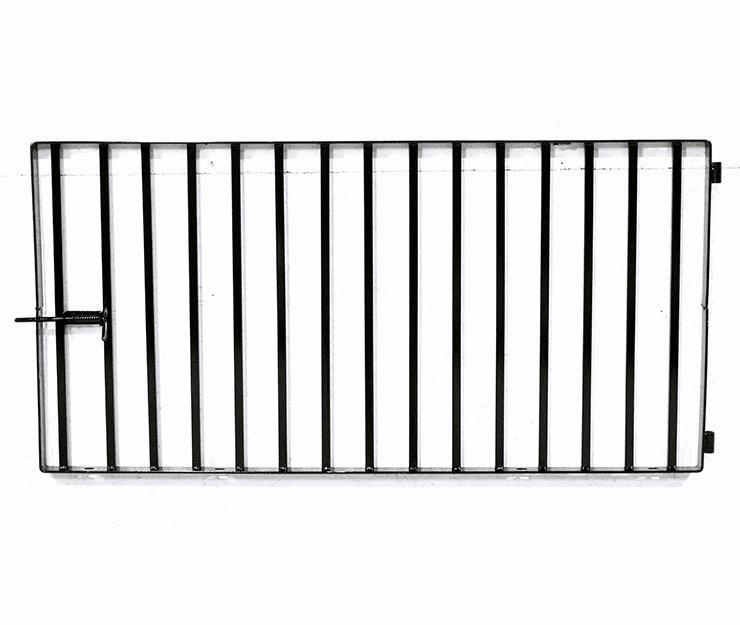

Door Guards are versatile and functional. All models are framed with heavy duty 3/16 x 1 1/2 hot rolled steel. Models CM 86 and CM 87 have sturdy 5/8" square steel tubing welded on 3" centers (2 3/8" opening allows for good ventilation).

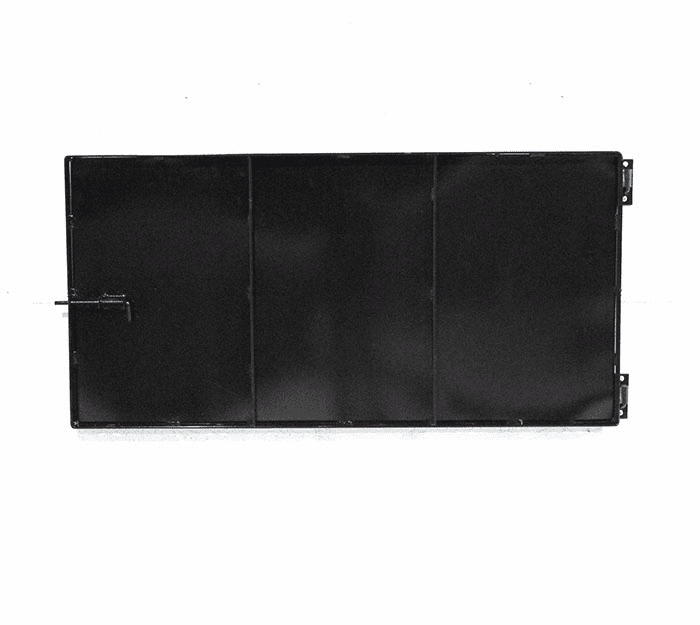

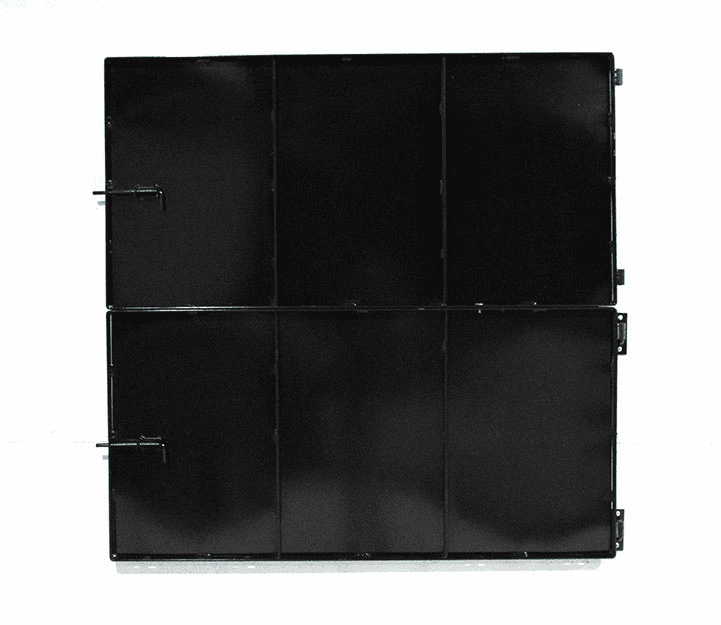

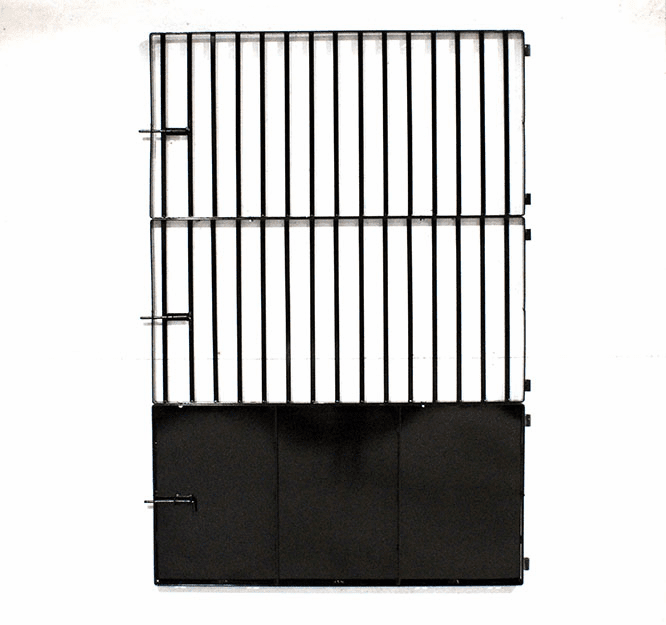

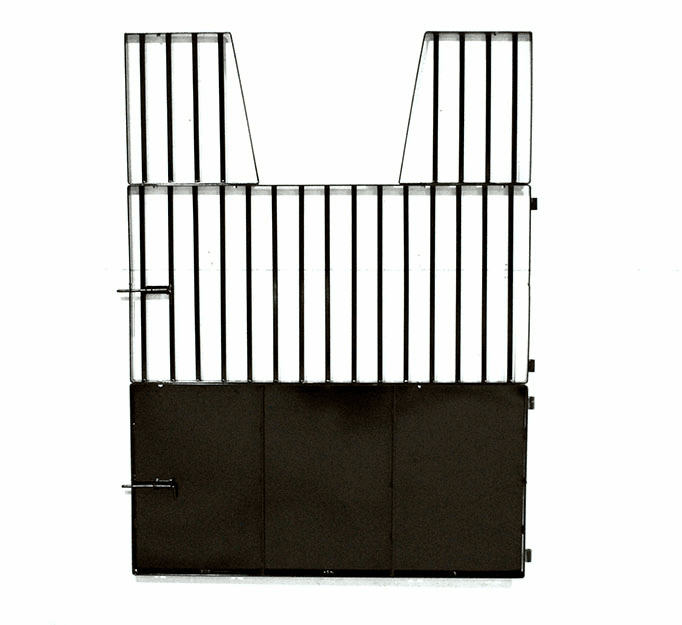

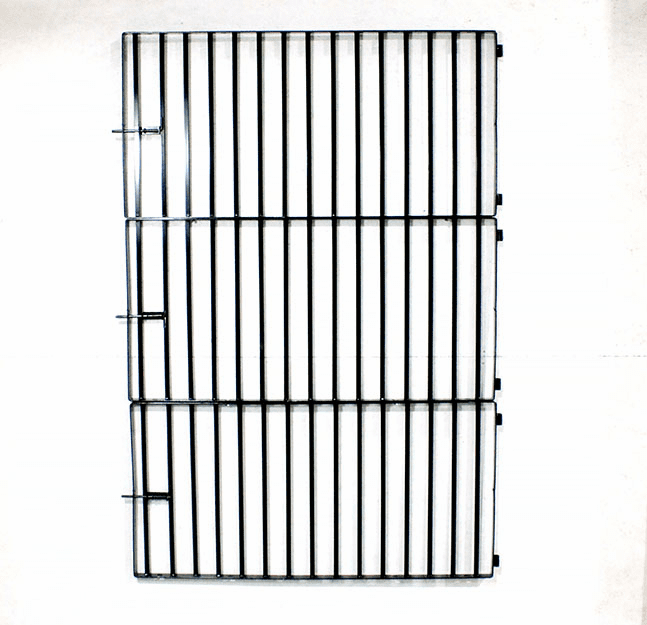

Model CM 85 has solid 16 gauge steel. Slotted holes on the top and bottom of frames allow any combination of guards to be bolted together and used in either a left or right hand operation. A special spring loaded latch offers one hand operation and prevents the horse opening the door guard. Two piece hinge design offers easy removal of unit from the stall while unlatched, but cannot be lifted while latched. *TOUGH *ATTRACTIVE *FLEXIBLE

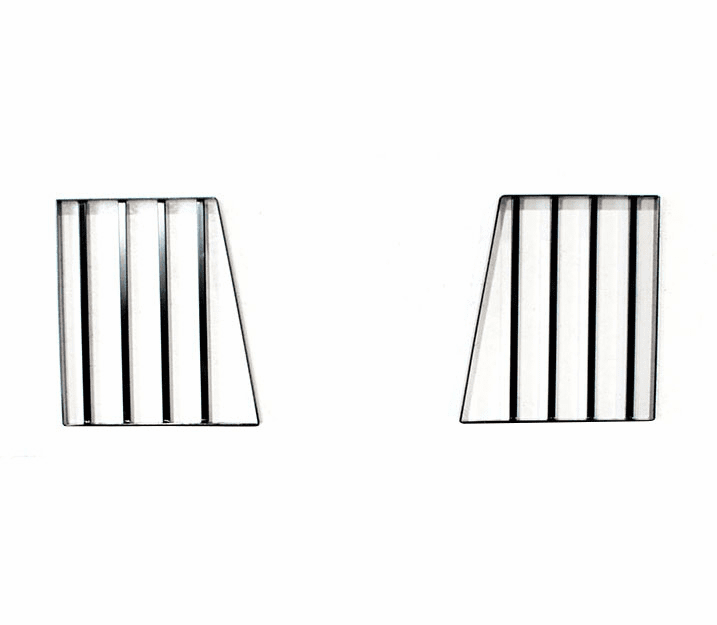

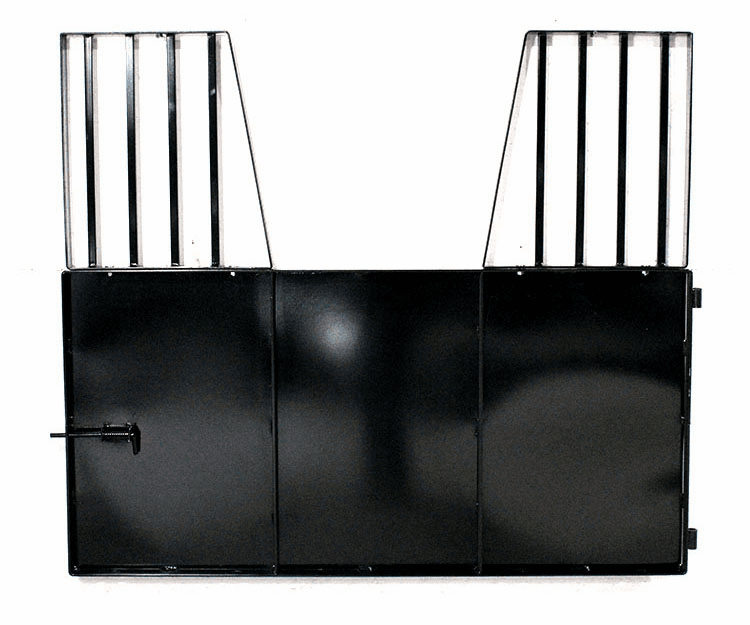

The Yoke set (Model CM 87) is 18" high while the guards (Models CM 85 & CM 86) are 24" high by 48" wide. Mounted on the inside of the doorway, the existing door does not need to be removed.
